Uttagsram

Circuit board to build connectors/splitters for LocoNet

Circuit board with configuration examples

Sales price 25,00 kr

Sales price without tax 20,00 kr

Ask a question about this product

MGP

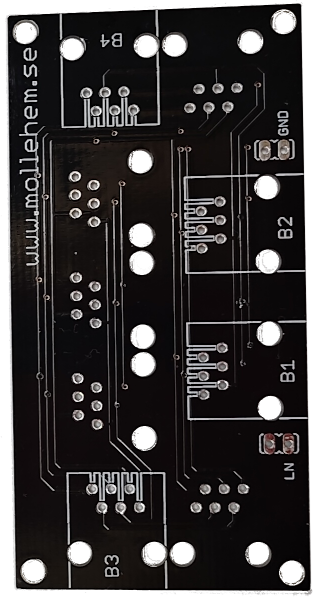

Kretskort konfiguration med sneda uttag på A-sidan

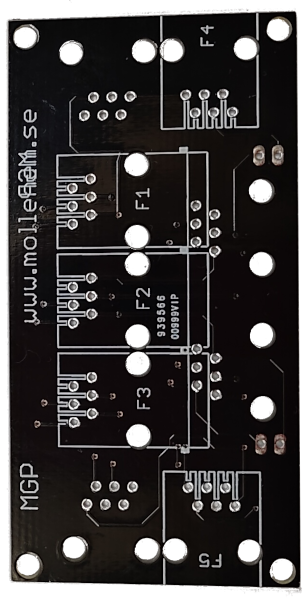

Kretskort konfiguration med sneda uttag på B-sida

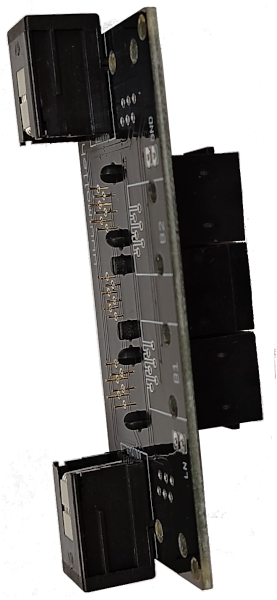

Kretskort exempelkonfiguration från sidan

Description

Circuit board for RJ sockets. Sockets can be placed in different configurations depending on the area of application.

Example:
Use as connectors for a hand throttles on the outside of the module/layout. Straight sockets are placed on one side of the board while angled sockets are placed on the other side. The board is then mounted with straight sockets placed in suitable holes in the module side. A frame is available to give a neat look on the outside.

As a pure loconet splitter, a number of sockets are placed on one side and the board is placed under the module.

The board is delivered without sockets! Sockets should be ordered separately as needed.
The sockets must be soldered to the board.
